Model LG 580.73083 300 THROUGH THE WALL AC – Common Parts & Diagrams
Diagram 0

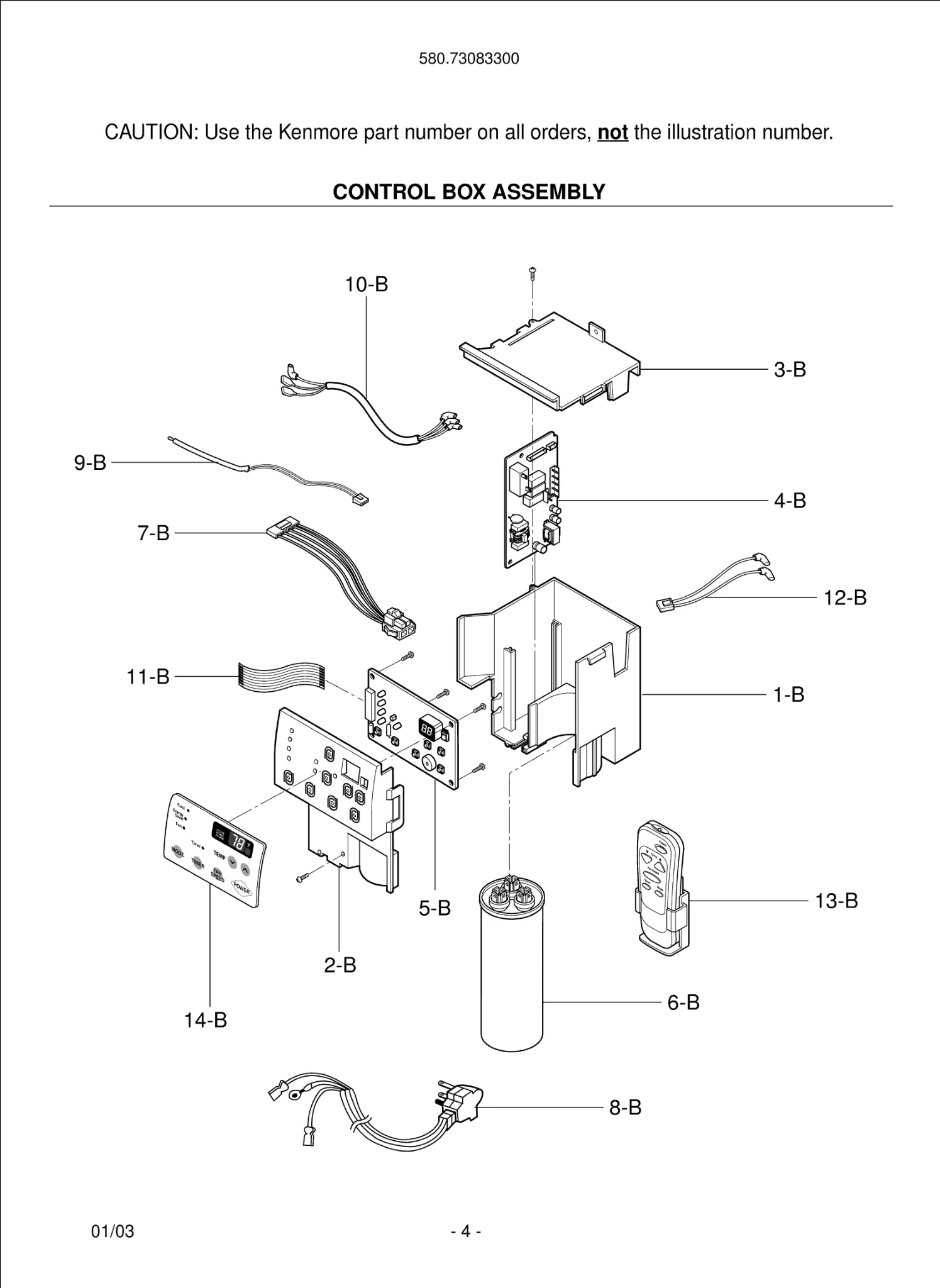

Diagram 1

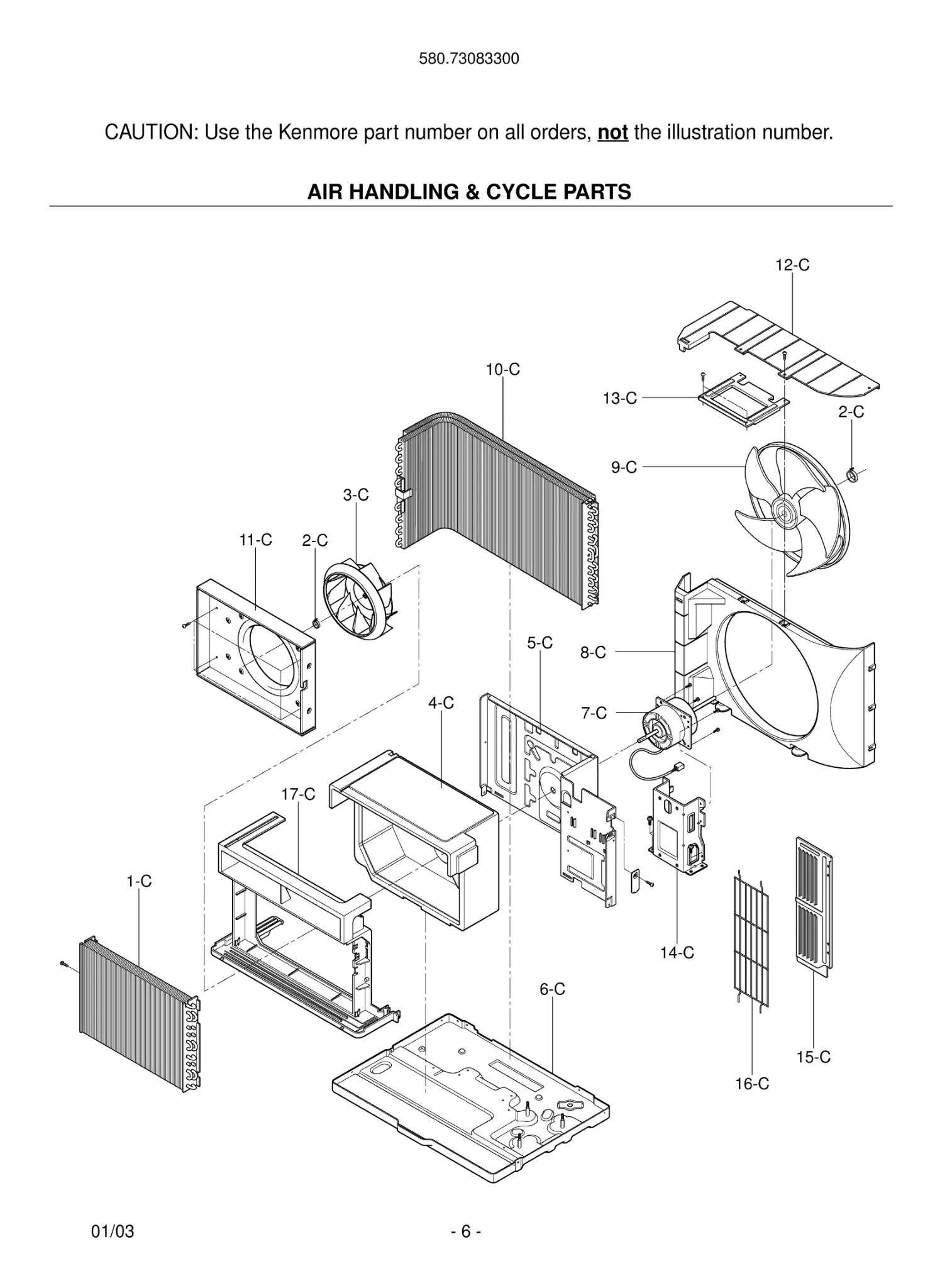

Diagram 2

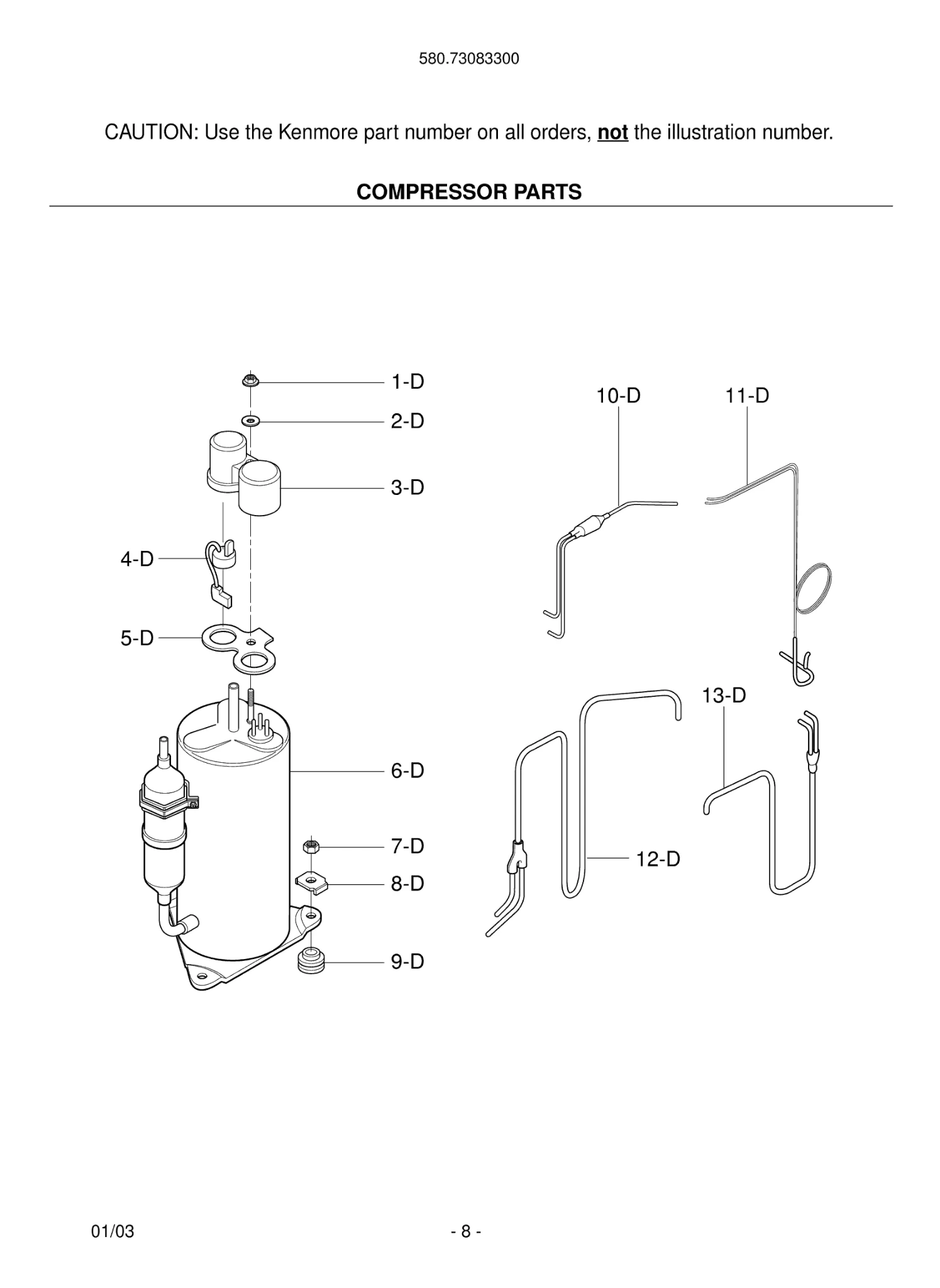

Diagram 3

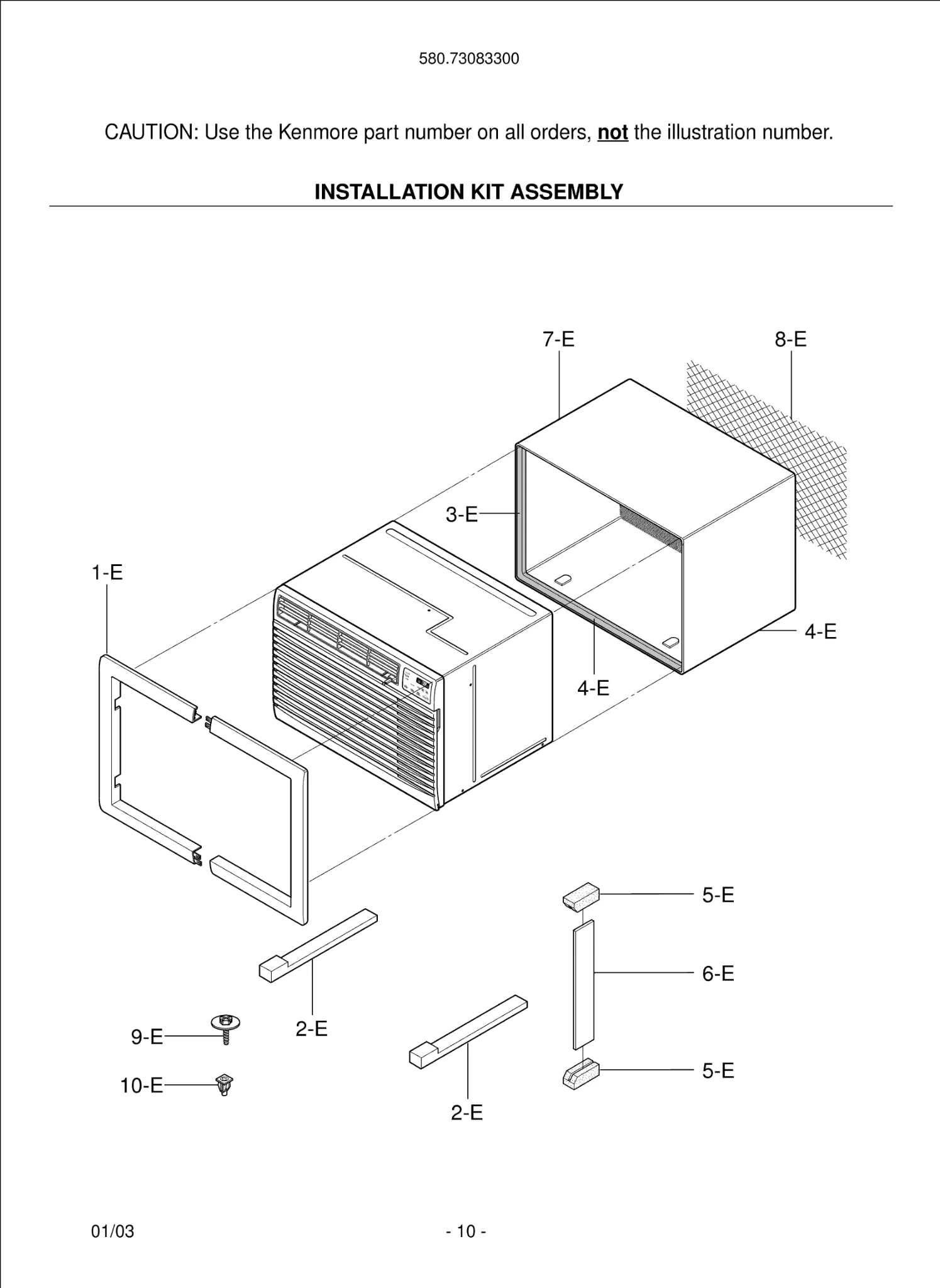

Diagram 4
Common parts from model LG 580.73083 300 THROUGH THE WALL AC
1-B
CONTROL BOX,SINGLE LGE 4994A10051A Contact Us For Availability
1-C
Evaporator Assembly,First LGE 5421A90037B Contact Us For Availability
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071E Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A10128A Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-B
COVER ASSEMBLY,CONTROL(SINGLE) LGE 3551A20092A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
3-E
INSULATION,PU LGE 5410A20046M Contact Us For Availability
4-C
SCROLL LGE 3072A20003B Contact Us For Availability
4-E
INSULATION,PU LGE 5410A20046K Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
5-B
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20344B Contact Us For Availability
5-C
BARRIER,SINGLE LGE 4790A20024B Contact Us For Availability
5-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
6-B
CAPACITOR LGE 6120AR2194P Contact Us For Availability
6-C
BASE ASSEMBLY,SINGLE LGE 3041A10014X Contact Us For Availability
6-D
COMPRESSOR SET LGE 2520UAFC2AC Contact Us For Availability
6-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
7-A
LINK LGE 4520A20003A Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20044G Contact Us For Availability
7-E
CABINET ASSY,SLEEVE LGE 3091A10028A Contact Us For Availability
8-A
LABEL,ENERGY LGE 3850A20928F Contact Us For Availability
8-B
POWER CORD ASSEMBLY LGE 6411A20028A Contact Us For Availability
9-B
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
9-C
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
10-B
CONNECTOR ASSEMBLY LGE 6631A30027A Contact Us For Availability
10-C
CONDENSER ASSEMBLY,BENT LGE 5403A20040M Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20289C Contact Us For Availability
11-B
CONNECTOR ASSEMBLY LGE 6631A10005C Contact Us For Availability
11-D
TUBE ASSEMBLY,CAPILLARY LGE 5211A20214N Contact Us For Availability
12-C
COVER LGE 3550A20030B Contact Us For Availability
12-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20498A Contact Us For Availability
13-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
13-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30588C Contact Us For Availability
14-B
ESCUTCHEON LGE 3831A10027A Contact Us For Availability
14-C
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
15-C
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
16-C
GRILLE,REAR LGE 3530A30007A Contact Us For Availability
17-C
AIR GUIDE LGE 5238A20005A Contact Us For Availability
× ![]()
